High-Performance Silicon Carbide Rollers with 1650°C Service Temperature, 196 W/m*K Thermal Conductivity, and 380MPa Flexural Strength for Roller Hearth Kilns

High-Performance Silicon Carbide Rollers with 1650°C Service Temperature, 196 W/m*K Thermal Conductivity, and 380MPa Flexural Strength for Roller Hearth Kilns
High-Performance Silicon Carbide Rollers with 1650°C Service Temperature, 196 W/m*K Thermal Conductivity, and 380MPa Flexural Strength for Roller Hearth Kilns
High-Performance Silicon Carbide Rollers with 1650°C Service Temperature, 196 W/m*K Thermal Conductivity, and 380MPa Flexural Strength for Roller Hearth Kilns High-Performance Silicon Carbide Rollers with 1650°C Service Temperature, 196 W/m*K Thermal Conductivity, and 380MPa Flexural Strength for Roller Hearth Kilns High-Performance Silicon Carbide Rollers with 1650°C Service Temperature, 196 W/m*K Thermal Conductivity, and 380MPa Flexural Strength for Roller Hearth Kilns High-Performance Silicon Carbide Rollers with 1650°C Service Temperature, 196 W/m*K Thermal Conductivity, and 380MPa Flexural Strength for Roller Hearth Kilns

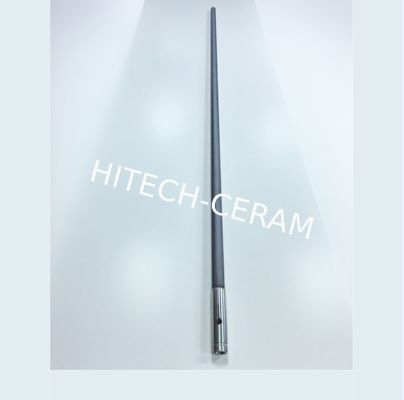

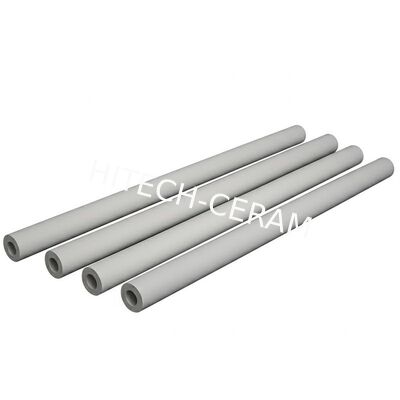

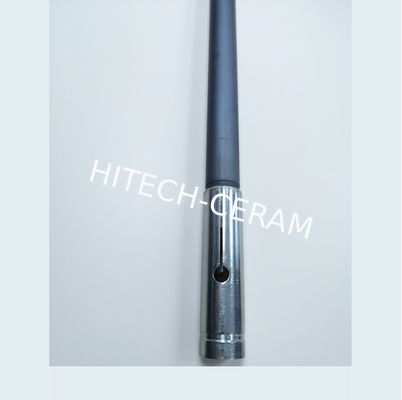

Large Image :  High-Performance Silicon Carbide Rollers with 1650°C Service Temperature, 196 W/m*K Thermal Conductivity, and 380MPa Flexural Strength for Roller Hearth Kilns

Product Details:
Place of Origin: China
Brand Name: KeGu
Model Number: Customizable
Payment & Shipping Terms:
Price: 200-500 yuan/kg
Packaging Details: Strong wooden box for Global shipping
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 2,000 pcs/month
Contact Now

High-Performance Silicon Carbide Rollers with 1650°C Service Temperature, 196 W/m*K Thermal Conductivity, and 380MPa Flexural Strength for Roller Hearth Kilns

Description
Density: >3.05g/cm3 Flexural Strength: 380MPa
Material: SiC Composition:SiC: >98%
Color: Black Max. Service Temp: 1650°C
Usage: Industry Usage Chemical Composition: Al2O3, SiO2
Sic Content: 85% Maximum Temperature: 1600℃
Characteristics: High Wear Resistance Thermal Expansion Coefficient: 4.0-4.5 × 10^-6 /K
Material Composition: 4%Si >96%Sic Working Temperature: 1650
Advantage: Wear And Abrasion Resistance Purity: 98%
Material: Silicon Carbide Ceramic Acid Alkaline Proof: Excellent
Solubility: Insoluble Open Porosity: <0.1%
Flexural Strength: 350-550 MPa
Highlight:

Silicon Carbide SSiC rollers

,

Roller hearth kiln rollers

,

Thermal efficient ceramic rollers

High-Performance Silicon Carbide (SSiC) Rollers for Roller Hearth Kilns
Enhanced Thermal Efficiency & Durability
Our pressureless sintered silicon carbide (SSiC) rollers are engineered specifically for the demanding environment of roller hearth kilns. They serve as the core refractory component, delivering unmatched high-temperature performance, superior thermal conductivity, and exceptional mechanical strength to maximize your kiln's productivity, energy efficiency, and product quality in continuous, high-throughput operations.
Key Features & Benefits
  • Exceptional High-Temperature Stability: Withstands continuous operation at temperatures up to 1650°C in air, maintaining structural integrity and preventing deformation.
  • Superior Thermal Conductivity & Shock Resistance: Excellent heat transfer (196 W/m*K at 20°C) ensures uniform temperature distribution, while a thermal shock resistance >350°C prevents cracking during rapid temperature cycles.
  • High Mechanical Strength & Wear Resistance: A high flexural strength (320-400 MPa) and extreme hardness (2350 HV) guarantee a long service life under heavy loads and abrasive conditions.
  • Optimized for Efficiency: The combination of high thermal conductivity and low porosity (≈0%) translates to faster heating rates, reduced energy consumption, and consistent product quality.
Technical Specifications (SSiC Material)
Property Unit Value
Composition: SiC Vol% ≥98
Density g/cm³ ≥3.06
Open Porosity Vol% ≈0
Vickers Hardness (HV1) kg/mm² 2350
Flexural Strength @ 20 °C MPa 320-400
Thermal Conductivity @ 20 °C W/(m*K) 196
Max. Service Temp (in air) °C 1650
Thermal Shock Resistance (ΔT) °C >350
Industry Applications
Our SSiC rollers are the ideal choice for roller hearth kilns in diverse industries, including:
  • Ceramics & Sanitaryware: Firing tiles, tableware, and sanitary products.
  • Building Materials: Processing technical ceramics and advanced refractories.
  • Metallurgy: Sintering of metal powders and heat treatment processes.
  • New Energy & Electronics: Calcination of lithium battery materials and electronic ceramics.
Customization & Support
We provide tailored solutions to meet your specific kiln design and operational requirements, ensuring optimal performance and integration.
