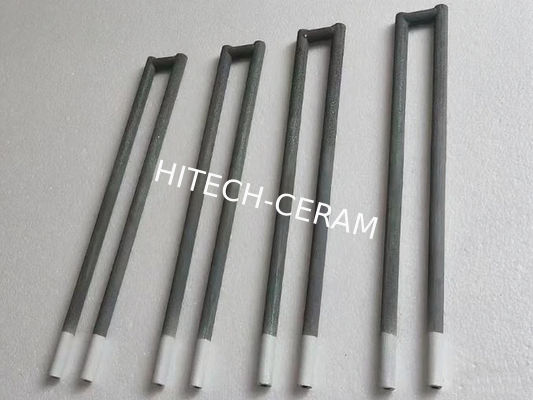

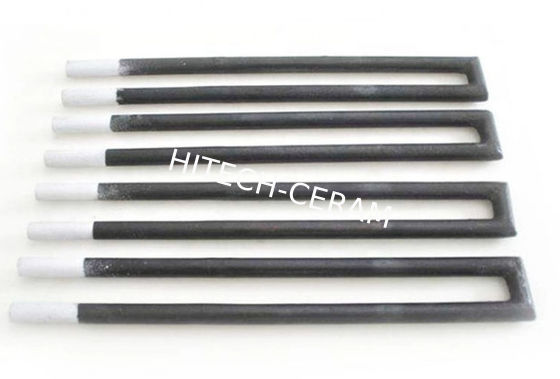

U-Shaped (U-Type) Silicon Carbide (SiC) Heating Elements
Precision-engineered U-Type Silicon Carbide heating elements deliver uniform high-temperature performance for laboratory and industrial furnace applications. Manufactured using advanced recrystallization technology with high-purity materials, these elements provide exceptional thermal stability, rapid heating cycles, and long-term reliability in demanding thermal environments.
Key Features & Benefits
  • Extreme Temperature Capacity - Operating temperatures up to 1600°C (2912°F)
  • High Mechanical Strength - Excellent thermal shock resistance and structural durability
  • Clean & Quiet Operation - No noise, fumes, or air pollution; ideal for controlled environments
  • Superior Oxidation & Corrosion Resistance - Long service life in aggressive atmospheres
  • Easy Installation & Maintenance - Designed for straightforward integration and replacement
Technical Specifications
Outer Diameter (mm) Hot Zone Length (mm) Cold Zone Length (mm) Overall Length (mm) Resistance Range (Ω)
8100-30060-200240-7002.1-8.6
12100-400100-350300-11000.8-5.8
14100-500150-350400-12000.7-5.6
16200-600200-350600-13000.7-4.4
18200-800200-400600-16000.7-5.8
20200-800250-600700-20000.6-6.0
25200-1200250-700700-26000.4-5.0
30300-2000250-800800-36000.4-4.0
35400-2000250-800900-36000.5-3.6
40500-2700250-8001000-43000.5-3.4
45500-3000250-7501000-45000.3-3.0
50600-2500300-7501200-40000.3-2.5
54600-2500300-7501200-40000.3-3.0
Custom U-Type SiC heating elements can be manufactured to your specific dimensions, resistance, and terminal configuration.
U-Type Silicon Carbide Heating Element with 1600°C Operating Temperature, High Mechanical Strength, and Oxidation & Corrosion Resistance 0
Primary Applications
  • Laboratory & Research Furnaces
  • Industrial High-Temperature Furnaces
  • Thermal Analysis & Materials Testing Equipment
  • Ceramics, Glass, & Metallurgy Kilns
  • Powder Metallurgy & Sintering Furnaces
  • Semiconductor Diffusion & Annealing Systems
How to Order - Required Information
To ensure an accurate quote and product match, please provide the following details:
  1. Element Type: U-Type, Rod, W-Type, H-Type, Spiral, or Double-Spiral
  2. Dimensions: Outer Diameter (OD), Hot Zone (HZ), Cold Zone (CZ), Overall Length (OL)
  3. For U/W Types: Terminal Distance (Center-to-Center)
  4. Electrical Specifications: Required Resistance (Ω) if specific
  5. Quantity
