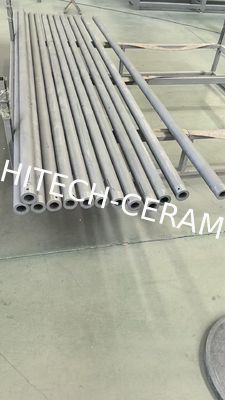

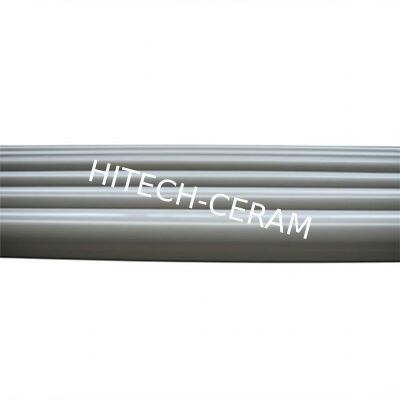

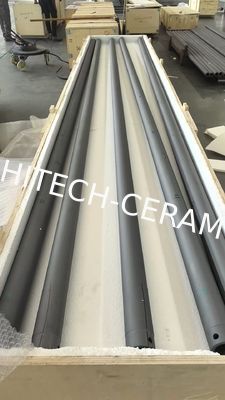

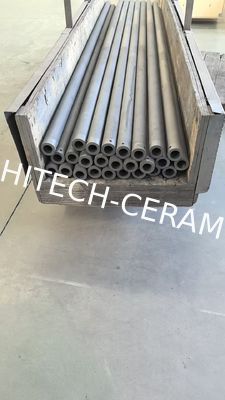

High-Temperature Capability SiC Roller Tube with Extended Service Life and Reduced Maintenance for Kiln Applications

High-Temperature Capability SiC Roller Tube with Extended Service Life and Reduced Maintenance for Kiln Applications
High-Temperature Capability SiC Roller Tube with Extended Service Life and Reduced Maintenance for Kiln Applications High-Temperature Capability SiC Roller Tube with Extended Service Life and Reduced Maintenance for Kiln Applications High-Temperature Capability SiC Roller Tube with Extended Service Life and Reduced Maintenance for Kiln Applications High-Temperature Capability SiC Roller Tube with Extended Service Life and Reduced Maintenance for Kiln Applications

Large Image :  High-Temperature Capability SiC Roller Tube with Extended Service Life and Reduced Maintenance for Kiln Applications

Product Details:
Contact Now

High-Temperature Capability SiC Roller Tube with Extended Service Life and Reduced Maintenance for Kiln Applications

Description
Highlight:

reaction sintered silicon carbide rollers

,

silicon carbide kiln roller tubes

,

premium reaction bonded carbide tubes

Elevate Kiln Performance with Premium Reaction Sintered Silicon Carbide Roller Tubes
Ensure unmatched stability and efficiency in your high-temperature roller hearth kilns with our advanced reaction sintered silicon carbide (SiC) roller tubes. Engineered for demanding applications across ceramics, lithium battery production, and specialty materials processing, they deliver superior durability and consistent performance under extreme conditions.
Why Choose Our SiC Roller Tubes?
Exceptional High-Temperature Capability
  • Withstands temperatures up to 1380 °C
  • Unique strength retention — bending strength increases from 250 MPa at 20 °C to 280 MPa at 1200 °C
Extended Service Life & Reduced Maintenance
  • Outstanding resistance to oxidation, wear, and acid/alkali corrosion
  • Ultra-high surface hardness (≥2100 HV2) ensures superior abrasion resistance
Superior Process Stability & Product Uniformity
  • Maintains dimensional stability under mechanical and thermal load
  • High thermal conductivity (45 W/(m*K) at 1200 °C) enables uniform heat distribution
  • Low thermal expansion (4.5*10⁻⁶ K⁻¹) minimizes thermal stress and deformation
Technical Specifications
Item Data
Max Temperature of Application 1380 °C
Density 3.04 - 3.08 g/cm³
Open Porosity <0.1%
Bending Strength (20°C) 250 MPa
Bending Strength (1200°C) 280 MPa
Modulus of Elasticity (20°C) 330 GPa
Modulus of Elasticity (1200°C) 300 GPa
Thermal Conductivity (1200°C) 45 W/(m*k)
Coefficient of Thermal Expansion 4.5*10⁻⁶ K⁻¹
Rigidity ≥2100 HV2
Acid Alkaline-proof Excellent
Upgrade to a kiln solution that guarantees reliability, enhances product quality, and reduces total cost of ownership.
