What is Ceramic Extrusion Molding?
Ceramic extrusion molding (also called extrusion forming) is a manufacturing process where plasticized ceramic clay is forced through a custom-shaped die using a screw or plunger. This method produces continuous, uniform cross-section ceramic products efficiently and is essential for making complex shapes like honeycomb ceramics.
How Ceramic Extrusion Works: The Basic Principles and Key Steps
The core principle of ceramic extrusion is the plastic deformation of a specially formulated clay mixture. The success of the entire process hinges on preparing a batch with suitable plasticity. This is achieved by adding precise amounts of water or organic plasticizers (such as binders, lubricants) to ceramic powders like alumina or silicon carbide. After thorough mixing and kneading, a soft, plastic mass is formed—a material that deforms under pressure but retains its shape once the force is removed.
This plastic clay is fed into the extruder's barrel, where the key steps unfold:
1. Raw Material Selection & Formulation
The process begins with choosing ceramic powders and additives. A precise formula is critical to achieve the right clay plasticity and homogeneity for extrusion.
2. Mixing and Vacuum De-airing
Ingredients are mixed in a kneader to ensure even distribution. Vacuum de-airing is a crucial step that removes trapped air bubbles, preventing defects like cracks during sintering and resulting in a denser, stronger green body.
3. The Extrusion Process
The de-aired clay is loaded into the extruder. Driven by a piston (for large or hard materials) or a rotating screw (for continuous production), the clay is compressed and forced under high pressure through a die (cavity mold). As it passes through the die, the clay undergoes plastic deformation, emerging as a continuous "green body" that perfectly mirrors the die's contour.
4. Cutting and Drying

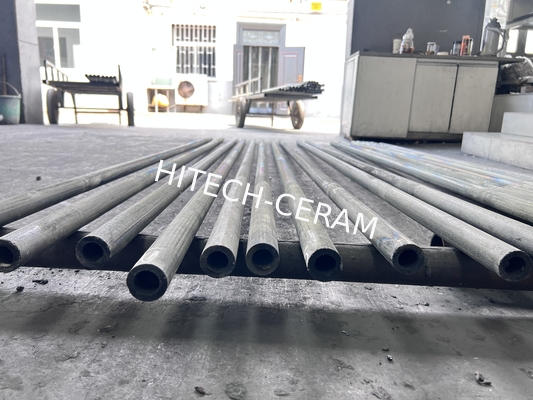

The continuous extrudate is then cut to the required length. The formed green body has low strength, so a carefully controlled drying process is essential to remove moisture without causing cracking or deformation.
5. Sintering
The fully dried parts are sintered in a kiln at high temperatures, where they develop their final mechanical strength, hardness, and chemical stability.
Advantages of Ceramic Extrusion Molding
- High Efficiency & Continuity: Ideal for automated, large-scale production of long, uniform parts.
- Complex Cross-Sections: Enables manufacturing of intricate shapes (e.g., honeycomb structures for catalysts or filters) that are difficult with other methods.
- Consistent Quality & High Density: High-pressure extrusion combined with vacuum de-airing results in products with precise dimensions and superior sintered performance.
- Cost-Effectiveness: Low per-part cost for high-volume production of constant-cross-section items.
Limitations of Ceramic Extrusion
- Shape Restrictions: Only suitable for products with a constant cross-section.
- High Tooling Costs: Complex dies (e.g., for honeycomb ceramics) are expensive to design and machine.
- Material Sensitivity: Clay composition and plasticity must be meticulously controlled.
- Anisotropy: Particle alignment during extrusion can cause directional variations in the final product's properties.
Applications of Extruded Ceramics
Extrusion molding is used across industries:
- Automotive: Catalytic converter substrates, particulate filters.
- Industrial: Thermal reactor internals, kiln furniture, tubes.
- Environmental: Membrane supports, porous filters.
- Construction: Bricks, tiles, specialized refractories.
Conclusion
Ceramic extrusion molding remains a vital process for manufacturing high-performance ceramic components. Its ability to produce complex, uniform shapes efficiently makes it indispensable in sectors from pollution control to advanced engineering. Continuous improvements in materials, die technology, and process automation further enhance its capabilities for future applications.
