Double Spiral SGR Type Sic Heater Elements 1625°C For Furnaces

Double Spiral SGR Type Sic Heater Elements 1625°C For Furnaces
Double Spiral SGR Type Sic Heater Elements 1625°C For Furnaces Double Spiral SGR Type Sic Heater Elements 1625°C For Furnaces Double Spiral SGR Type Sic Heater Elements 1625°C For Furnaces Double Spiral SGR Type Sic Heater Elements 1625°C For Furnaces

Large Image :  Double Spiral SGR Type Sic Heater Elements 1625°C For Furnaces

Product Details:
Place of Origin: China
Brand Name: KEGU
Model Number: Customizable
Payment & Shipping Terms:
Price: 200-500 yuan/kg
Packaging Details: Strong wooden box for Global shipping
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 2,000 pcs/month
Contact Now

Double Spiral SGR Type Sic Heater Elements 1625°C For Furnaces

Description
Material: SiC Composition:SiC: ＞85%
Color: Black Density: 2.5~2.6g/cm³
Max. Service Temp: 1380℃ Flexural Strength: 70-90 MPa
Size: Customized Heat Conduction: 23.26 W/(m·℃)
Resistivity: 1000～2000 Ω·mm2/m Tensile Strength: 39.2～49 MPa
Max. Service Temp.: 1500℃ Linear Thermal Expansion Coefficient (20-1500℃): 5×10⁻⁶/℃
Electrical Resistivity: 1000~2000Ω·mm²/m
Highlight:

SGR Type Sic Heater Elements

,

1625C Sic Heater Elements

,

Furnaces Silicon Carbide Heater Elements

1625°C Double Spiral SGR Type Sic Heating Element For Various Furnaces

Description
Highlight:

SGR Type Sic Heating Element

,

Various Furnaces Sic Heating Element

,

Double Spiral Sic Heating Element




Product Description

1625°C Double Spiral SGR Type Sic Heating Element For Various Furnaces 0
1625°C Double Spiral SGR Type Sic Heating Element For Various Furnaces 1
1625°C Double Spiral SGR Type Sic Heating Element For Various Furnaces 2
1625°C Double Spiral SGR Type Sic Heating Element For Various Furnaces 3
Specification
Material
Silicon Carbide Powder
Voltage
220 volts, 380 volts, 110 volts
Shapes
U Shape', W Shape, Spiral Shape, Straight Type, L Type, etc
SiC Content
＞99%
Color
Black
Resistence
Uniform resistance
Power
Adjustable
Working temperature
up to 1625C


Recommend Products
1625°C Double Spiral SGR Type Sic Heating Element For Various Furnaces 4

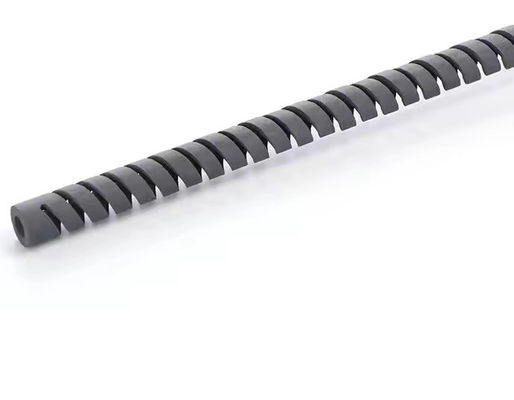

SGR Type
Double spiral type sic heater could max reach 1625 ℃

1625°C Double Spiral SGR Type Sic Heating Element For Various Furnaces 5

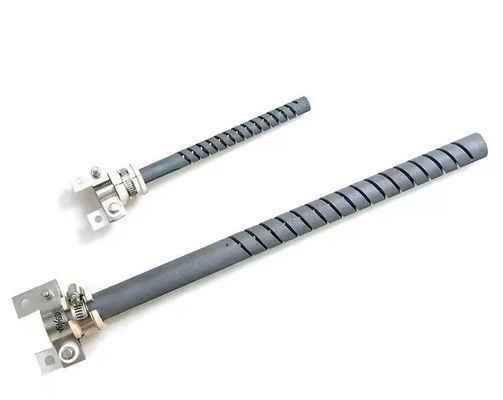

SG Type
Single spiral type sic heater could max reach 1625 ℃

1625°C Double Spiral SGR Type Sic Heating Element For Various Furnaces 6



U Type
Ideal for drop through design, radiant tube systems or where one element will not span the heating chamber
1625°C Double Spiral SGR Type Sic Heating Element For Various Furnaces 7



W Type
W shape sic heater is widely used in glass industry, particularly for float glass tin bath

1625°C Double Spiral SGR Type Sic Heating Element For Various Furnaces 8

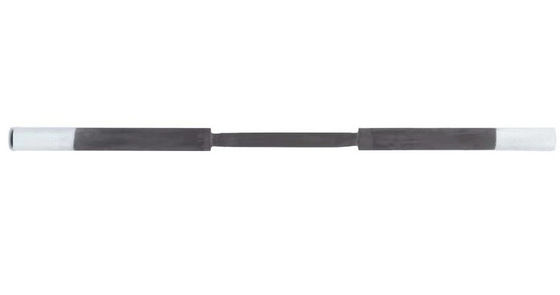

Straight Shape
These are the mostly used sic heater, widely used for various electric furnaces

1625°C Double Spiral SGR Type Sic Heating Element For Various Furnaces 9



Accessories
Except heating element, we also provide many related accessories
Exhibition
1625°C Double Spiral SGR Type Sic Heating Element For Various Furnaces 10
Packing & Delivery
1625°C Double Spiral SGR Type Sic Heating Element For Various Furnaces 11
FAQ
Q1: Are you trading company or manufacturer ?
A1: We focus on manufacturing silicon carbide heater over 20 years.
Q2: What's your MOQ?
A2: We could provide only 1 pcs sample order for checking our quality
Q3: Does your heater has any warranty?
A3: Usually our sic heater provide 6 months warranty. For some more high quality elements, our heating element could reach one to several years span life.
Q4: How to get exact quotation on your sic heater?
A4: We need information of overall length, heating zone length, diameter, resistance and quantity
Q5: As the sic heater is very fragile, do you have any safety package and warranty?
A5: First, we will pack each element safely. Second, we promise return back money of the broken elements.
Q6: How long is your delivery time?
A6: For regular sizes, our lead time is 1-15 days; For special sizes, our delivery time is within 30 days.
