Thick-Wall Silicon Carbide Roller with High-Load Capacity and Thermal Stability for Industrial Applications

Thick-Wall Silicon Carbide Roller with High-Load Capacity and Thermal Stability for Industrial Applications
Thick-Wall Silicon Carbide Roller with High-Load Capacity and Thermal Stability for Industrial Applications
Thick-Wall Silicon Carbide Roller with High-Load Capacity and Thermal Stability for Industrial Applications Thick-Wall Silicon Carbide Roller with High-Load Capacity and Thermal Stability for Industrial Applications Thick-Wall Silicon Carbide Roller with High-Load Capacity and Thermal Stability for Industrial Applications

Large Image :  Thick-Wall Silicon Carbide Roller with High-Load Capacity and Thermal Stability for Industrial Applications

Product Details:
Place of Origin: China
Brand Name: KeGu
Model Number: Customizable
Payment & Shipping Terms:
Price: 200-500 yuan/kg
Packaging Details: Strong wooden box for Global shipping
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 2,000 pcs/month
Contact Now

Thick-Wall Silicon Carbide Roller with High-Load Capacity and Thermal Stability for Industrial Applications

Description
Density: >3.05g/cm3 Flexural Strength: 380MPa
Material: SiC Composition:SiC: >98%
Color: Black Max. Service Temp: 1650°C
Highlight:

thick-wall silicon carbide roller

,

pressureless sintered ceramic roller

,

high-load silicon carbide roller

Thick-Wall Pressureless Sintered Silicon Carbide Roller | High-Load Capacity & Thermal Stability
Our thick-wall pressureless sintered silicon carbide (SSiC) roller is engineered to overcome the limitations of conventional rollers, which typically feature wall thicknesses of only 6-8mm. Available in two standardized specifications—40mm OD * 20mm ID and 45mm OD * 20mm ID—this roller delivers exceptional structural strength, thermal stability, and wear resistance.
Key Features & Advantages
  • Reinforced Structural Integrity: With a wall thickness of 10-12.5mm, the roller provides superior load-bearing capacity and resistance to mechanical stress, high-temperature scouring, and corrosive atmospheres.
  • Exceptional Thermal & Mechanical Properties: Combines high thermal conductivity (196 W/m*K at 20°C), outstanding thermal shock resistance (>350°C ΔT), and extreme hardness (2350 HV) to ensure longevity under cyclic heating and abrasive conditions.
  • Optimized Manufacturing Process: Produced via pressureless sintering, the roller achieves near-zero porosity (≈0%) and a dense, uniform microstructure for consistent performance.
  • Proven Industrial Validation: The 40mm OD variant is mass-produced and widely adopted, while the 45mm OD version is process-optimized and rigorously tested for enhanced durability.
Technical Specifications
Property Unit Value
Composition: SiC Vol% ≥98
Density @ 20 °C g/cm³ ≥3.06
Open Porosity Vol% ≈0
Vickers Hardness (HV1) kg/mm² 2350
Flexural Strength @ 20 °C MPa 320-400
Thermal Conductivity @ 20 °C W/(m*K) 196
Max. Service Temperature (in air) °C 1650
Thermal Shock Resistance ΔT °C >350
Customization Options
We support tailored solutions with extrusion molding capabilities for rollers up to:
  • Maximum Diameter: 90mm
  • Maximum Wall Thickness: 15mm
  • Maximum Length: 4 meters
Applications
  • Photovoltaic Glass Manufacturing: Withstands high temperatures and corrosive environments in glass tempering kilns.
  • Lithium Battery Material Processing: Ideal for sintering furnaces requiring purity and thermal shock resistance.
  • Ceramic & Tile Production: Durable performance in roller kilns under mechanical and thermal stress.
Why Choose Our SiC Roller?
  1. Extended Service Life: Reduced wear and deformation under load translate to lower replacement frequency and downtime.
  2. Energy Efficiency: High thermal conductivity ensures uniform heat distribution, optimizing process efficiency.
  3. Rapid Deployment: Standardized sizes enable faster validation and delivery, while custom designs are supported for specialized needs.

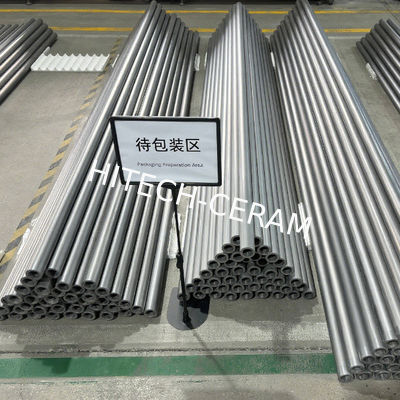

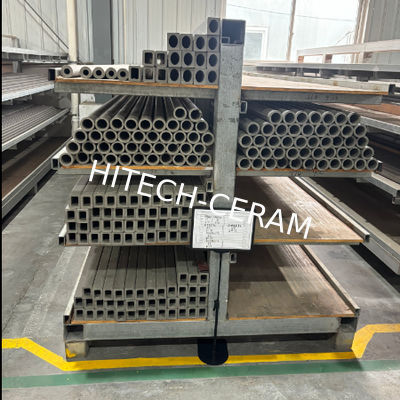

Packaging & Shipping
Thick-Wall Silicon Carbide Roller with High-Load Capacity and Thermal Stability for Industrial Applications 0 Thick-Wall Silicon Carbide Roller with High-Load Capacity and Thermal Stability for Industrial Applications 1
