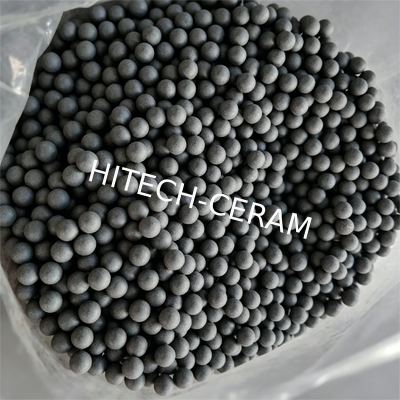

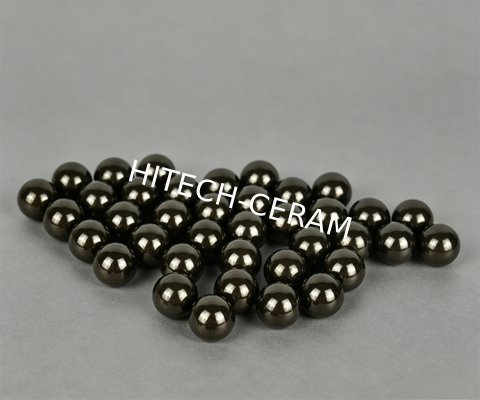

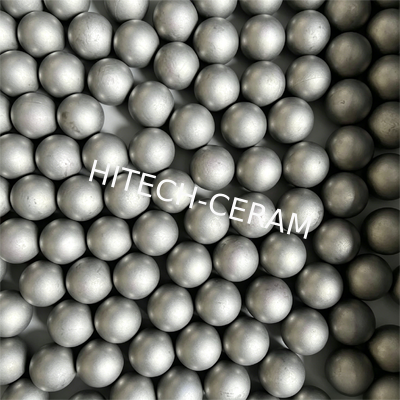

9-10mm Pressureless Sintered Silicon Carbide Grinding Balls
9-10mm Pressureless Sintered Silicon Carbide Grinding Balls are medium-to-large ceramic milling media specifically designed for drum ball mills. Engineered for coarse grinding and intermediate comminution of high-hardness, brittle materials, this size range offers optimal balance between impact momentum and specific surface area.
Product Positioning
These grinding balls are ideal for high-throughput applications including mineral processing, specialty ceramic raw materials, pre-crushing of superabrasives, and coarse milling of new energy battery material precursors. Manufactured from nano-sized silicon carbide powder via high-temperature pressureless sintering, they deliver exceptional strength, extreme hardness, superior wear resistance, high-temperature tolerance, and resistance to acids and alkalis.
Key Performance Parameters
| Parameter |
Typical Value |
Remarks |
| Physical Properties |
| Density |
≥ 3.15 g/cm³ |
Pressureless sintered, high densification |
| Color |
Black |
Typical appearance of pressureless sintered SiC |
| Mechanical Properties |
| Hardness (Vickers) |
HV 2000-2500 |
Approx. HRA ≥ 93, Mohs hardness ~9.5 |
| Elastic Modulus |
> 460 GPa |
>50% higher than steel |
| Flexural Strength |
400-650 MPa |
Up to 600-650 MPa for high-performance grades |
| Fracture Toughness |
3.5-5.1 MPa*m¹/² |
Solid-state sintering: 3.5~4.5; optimized formulations >5.1 |
| Compressive Strength |
> 2500 MPa |
Resists deformation or fracture under high speed/pressure |
| Thermal Properties |
| Max. Service Temperature |
Up to 1600°C |
Maintains high strength and hardness at elevated temperatures |
| Coefficient of Thermal Expansion |
~3.8 * 10⁻⁶ /℃ |
~25% of steel, excellent thermal stability |
| Quality & Precision |
| Sphericity Deviation |
≤ 0.5 μm (precision grade) |
Bearing-grade balls can achieve even tighter tolerances |
| Surface Roughness |
Ra ≤ 0.02 μm (precision grade) |
Significantly reduces friction coefficient |
| Precision Grade |
G10 / G16 optional |
Complies with precision ceramic ball standards |
| Size Accuracy |
φ 9 mm / φ 10 mm |
Custom sizes available upon request |
| Breakage Rate |
≤ 0.2% |
Under normal milling conditions |
Core Advantages of Pressureless Sintering Process
Pressureless sintering densifies silicon carbide powder at high temperature (>2000°C) without external pressure, offering superior performance compared to reaction sintering:
| Aspect |
Pressureless Sintered |
Reaction Sintered |
Comments |
| Density (g/cm³) |
> 3.15 |
> 3.02 |
Higher densification, lower porosity |
| Hardness (Hv) |
2000-2500 |
-- |
Higher hardness, superior wear resistance |
| Corrosion Resistance |
Excellent against strong acids & bases |
Poor resistance to HF and superacids |
More comprehensive chemical stability |
| High-Temperature Performance |
Maintains strength up to 1000°C |
Flexural strength drops sharply above 1400°C |
Significantly better high-temperature stability |
| Wear Resistance |
Excellent |
Good |
Outstanding overall wear resistance |
| Fracture Resistance |
High |
Good |
Higher impact resistance due to better densification |
| Production Process |
Complex, high capital investment |
Simpler, lower cost |
Higher production threshold |
| Self-Lubricity |
Good |
Slightly better due to free Si |
Minor advantage for reaction-sintered |
Applications & Technical Value
Intermediate Crushing & Coarse Grinding of Superhard Materials
- Pre-grinding of SiC, B₄C, Si₃N₄, Al₂O₃, and other hard-brittle materials
- Extremely high hardness (second only to diamond) enables efficient comminution
- Very low impurity introduction preserves powder purity and particle size consistency
Mineral Processing & Ceramic Raw Material Preparation
- Efficient crushing of architectural and industrial ceramic raw materials
- Replaces conventional steel or alumina balls, significantly reducing milling energy consumption
- Suitable for dry or wet grinding of non-metallic minerals
New Energy Material Pre-treatment
- Coarse grinding and dispersion of precursors for lithium-ion battery cathode and anode materials
- Uniquely avoids metallic contamination, safeguarding the purity of battery materials
Specialty Ceramics & Powder Metallurgy
- Self-grinding of high-purity SiC powder - using identical material eliminates cross-contamination
- Ideal for electronic ceramics, structural ceramics, and other purity-sensitive production processes
Quality Assurance & Manufacturing Standards
- Raw Material Control: High-purity nano-sized SiC powder with appropriate sintering aids
- Forming: Cold isostatic pressing ensures uniform green density
- Sintering: High-temperature pressureless sintering in non-oxidizing atmosphere
- Precision Finishing: Processed to G10/G16 grade precision with sphericity deviation <0.5 μm
- Quality Inspection: Full-line production quality monitoring with advanced testing equipment
Performance Comparison with Other Grinding Media
| Property |
Press. Sintered SiC |
High-Cr Steel |
Alumina (92-99%) |
Zirconia (Y-TZP) |
Silicon Nitride |
| Density (g/cm³) |
3.15 |
7.8 |
3.6-3.9 |
6.0 |
3.2-3.3 |
| Hardness (HV) |
2000-2500 |
650-800 |
1200-1500 |
1200-1400 |
1400-1700 |
| Elastic Modulus (GPa) |
>460 |
200-210 |
300-380 |
210 |
310-320 |
| Fracture Toughness (MPa*m¹/²) |
3.5-5.1 |
20-50 (metal) |
3-4 |
8-12 |
6-8 |
| Relative Wear Rate |
1 (baseline) |
20-50 |
3-5 |
1.5-2 |
1.2-1.5 |
| Max. Service Temp. (°C) |
1600 |
500 (oxidation) |
1500 |
500 |
1200 |
| Acid/Alkali Resistance |
Excellent (except HF) |
Poor (rusts easily) |
Good (poor in strong alkalis) |
Excellent |
Excellent |
| Magnetic |
No |
Yes |
No |
No |
No |
| Contamination Risk |
Very low (SiC) |
High (Fe, Cr) |
Low (Al₂O₃) |
Low (ZrO₂) |
Very low (Si₃N₄) |
| Relative Cost |
Medium-high |
Very low |
Low |
High |
Very high |
Engineering Selection Guidelines
Preferred Applications
- Milling materials with Mohs hardness ≥ 8 (SiC, B₄C, Al₂O₃, ZrO₂, diamond)
- Strict restrictions on metal contamination and magnetic particles
- Wet milling requiring long-term resistance to acidic or alkaline slurries (pH 2-12)
- Dry or semi-dry milling with elevated temperatures (200-800°C)
- Goal of minimizing media consumption and reducing replacement frequency
Consider Alternative Media When
- Feed size > 8-10 mm in coarse crushing stage, or severe impact
- Extremely cost-sensitive, small-scale production
- Need for maximum fracture toughness and impact fatigue resistance in fine grinding
Summary
The 9-10 mm pressureless sintered SiC grinding ball combines high hardness, exceptional wear resistance, excellent thermochemical stability, and good impact toughness. With ultra-low wear rate (only 1/5 that of zirconia balls), minimal impurity introduction, and long service life, it delivers significant technical and economic value in new energy materials, specialty ceramics, superabrasive processing, and advanced mineral processing.
For further information or to discuss your specific requirements, please contact us directly.
